Pull Request Lifecycle

The merge queue in Mergify is a powerful tool for maintaining the integrity of your codebase, ensuring that every Pull Request (PR) is up-to-date and passes all necessary checks before being merged. But once a PR is added to a merge queue, what exactly happens? Understanding the lifecycle of a PR in the merge queue is essential for managing your PRs effectively and ensuring a smooth, efficient workflow.

In this guide, we will walk you through the journey of a PR once it enters the merge queue, from the moment it’s added until it’s either successfully merged or removed from the queue. We’ll also explain how to monitor and manage your merge queue effectively, and share some best practices for handling common scenarios such as requeueing and dequeueing PRs.

A pull request can be added to the merge queue either manually or automatically. Here’s an overview of the process:

• Manual addition: A pull request can be manually added to the merge queue using the @mergifyio queue command or by ticking the merge queue status comment checkbox.

• Automated addition: A pull request can be automatically added to the merge queue using auto_merge in merge_protections_settings.

Before a pull request can be added to the merge queue, it must meet certain conditions, specified under queue_conditions in your queue_rules. These conditions might include requirements such as passing all checks, having a certain number of approved reviews, or having specific labels.

Once a pull request meets the specified queue conditions, it is added to the end of the merge queue. However, priority rules can be used to alter its position in the queue.

The lifecycle of a pull request in the merge queue begins as soon as it enters the queue.

1. Position in the queue: The pull request assumes its position in the queue based on the order in which it entered. As mentioned in the previous section, the order may be influenced by any defined priority rules.

2. Waiting for its turn: The pull request will wait in the queue until it is its turn to be processed. The processing of pull requests in the queue is sequential, which means that only one pull request is processed at a time by default.

3. Validating the pull request: When a pull request is next in line, it enters the validation phase. During this phase, the Mergify engine will temporarily merge it with the base branch, re-triggering the CI system. Before the actual merge happens, it will check that the merge_conditions specified in the configuration file are satisfied. This ensures that only pull requests that meet the necessary conditions are merged.

4. Merge success or failure:

   • If the validation is successful, meaning all the merge_conditions are met, the pull request leaves the queue and is merged into the base branch.

   • If the merge is not successful, the pull request is removed from the queue. This could be due to various reasons, such as conflicts with the base branch or a check failure.

A pull request can be removed from the merge queue in a couple of ways:

1. Non-compliance with queue_conditions: If a pull request no longer meets the queue_conditions specified in the Mergify configuration file, it will automatically be removed from the queue. For instance, if one of the queue_conditions is the presence of a specific label, and that label gets removed from the pull request, Mergify will automatically remove the pull request from the queue.

2. Use of the dequeue command: A pull request can be manually removed from the queue by issuing the @mergifyio dequeue command. This is particularly useful in situations where you need to stop a pull request from being merged, such as when a critical issue is discovered.

Please note, a pull request removed from the queue with the dequeue command will not rejoin the queue automatically — it will need to be manually re-added to the queue by re-applying the queue command and by re-satisfying the queue_conditions.

These methods provide granular control over your merge queue, ensuring that only the appropriate pull requests get processed and merged.

When a pull request reaches the front of the queue, Mergify validates it by re-running your CI against a temporary merge commit. If those checks never report back (because of a stuck CI job or a provider outage), the pull request would block the queue indefinitely. The checks_timeout option in your queue_rules caps how long Mergify waits for pending checks before removing the pull request from the queue.

You can set checks_timeout in three ways:

• auto (the default): Mergify computes the timeout from the queue’s own recent CI runtime, using the 95th-percentile duration of successful runs plus a safety margin. The value adapts as your CI gets faster or slower, so you don’t have to guess one. Until the queue has gathered enough CI history, auto applies no timeout.

• A fixed duration, such as 30 min or 2 hours. The timeout cannot be shorter than 60 seconds.

• null, which disables the timeout. Mergify waits on pending checks indefinitely.

queue_rules:
  - name: default
    checks_timeout: 45 min

When a pull request is dequeued because its checks timed out, Mergify states how long it waited (for example, “the checks did not pass within the checks timeout of 45 minutes”) under the checks-timeout dequeue reason. For batches, see Handling Batch Failure or Timeout.

Even with all the automated checks and balances in place, it’s possible for a pull request to fail the validation checks. This could be due to a wide range of issues, such as coding errors, conflicts with the base branch, failing CI tests, or not meeting certain merge_conditions. When this happens, the pull request is removed from the queue, and Mergify informs the pull request author and reviewers about the failure.

Here’s how to handle such situations:

1. Review the failure reasons: Mergify will provide a detailed report outlining why the pull request failed the checks. You should start by reviewing these details to understand what went wrong.

2. Update the pull request: Once you’ve identified the issue, the next step is to fix it. This might involve updating the code, resolving merge conflicts, or making other necessary changes to the pull request.

3. Re-run the checks: After updating the pull request, the validation checks need to be re-run. If you’re using a continuous integration (CI) system, it will likely automatically run the checks again once the pull request is updated.

4. Requeue the pull request: Once all the issues have been resolved and the validation checks pass, the pull request needs to be requeued. You can do this by issuing the @mergifyio queue command.

By carefully addressing each failed check and ensuring all the issues are fixed, you can maintain the integrity of your codebase while ensuring that every pull request is ready to be merged when it’s time.

At times, you might find it necessary to requeue a pull request. This could happen when a pull request is removed from the queue because it failed to meet the merge_conditions of the queue it was in. This typically happens when a check failed because of a flaky test; the PR is removed from the queue whereas it might have been mergeable.

In that case, the PR might be re-added to the merge queue to try again by using the @mergifyio queue command, which will reset its status to a neutral state so Mergify is happy to retry it. Once issued, the command will place the pull request back in the merge queue according to the queue’s queue_conditions.

The merge queue tests pull requests against the latest version of the base branch. Therefore, if a new commit is pushed manually to the base branch, Mergify resets the process and starts over with the updated base branch.

This can be disabled by setting reset_on_external_merge: never in your configuration file:

merge_queue:
  reset_on_external_merge: never

To test a pull request, Mergify creates a queue branch, runs the required checks against it, and deletes that branch once the pull request leaves the queue. This deletion is normally immediate, triggered by a GitHub webhook.

When that deletion fails, the queue branch is left behind. To keep these orphaned branches from piling up, Mergify periodically scans your repository for leftover queue branches and deletes them in the background. There is nothing to clean up by hand.

Mergify identifies a leftover queue branch by its name alone. A branch is deleted only when both of the following are true:

• Its name is the queue_branch_prefix, optionally prefixed with tmp-, followed by exactly 10 hexadecimal characters (0–9, a–f).

• It is not in use by an active queue.

With the default prefix, a matching branch looks like mergify/merge-queue/a76b1f3d25. With a custom queue_branch_prefix such as mergify-, it looks like mergify-a76b1f3d25. The temporary tmp- branch Mergify creates during setup (for example, tmp-mergify/merge-queue/a76b1f3d25) is matched the same way. A CI retry generates a fresh name of the same shape, with no extra suffix.

To keep track of the status and progress of your pull requests in the merge queue, Mergify provides multiple tools and indicators. Here’s how you can use them:

1. Check the Mergify dashboard: The Mergify dashboard provides a comprehensive view of your queue. You can see the number of pull requests in each queue and their position.

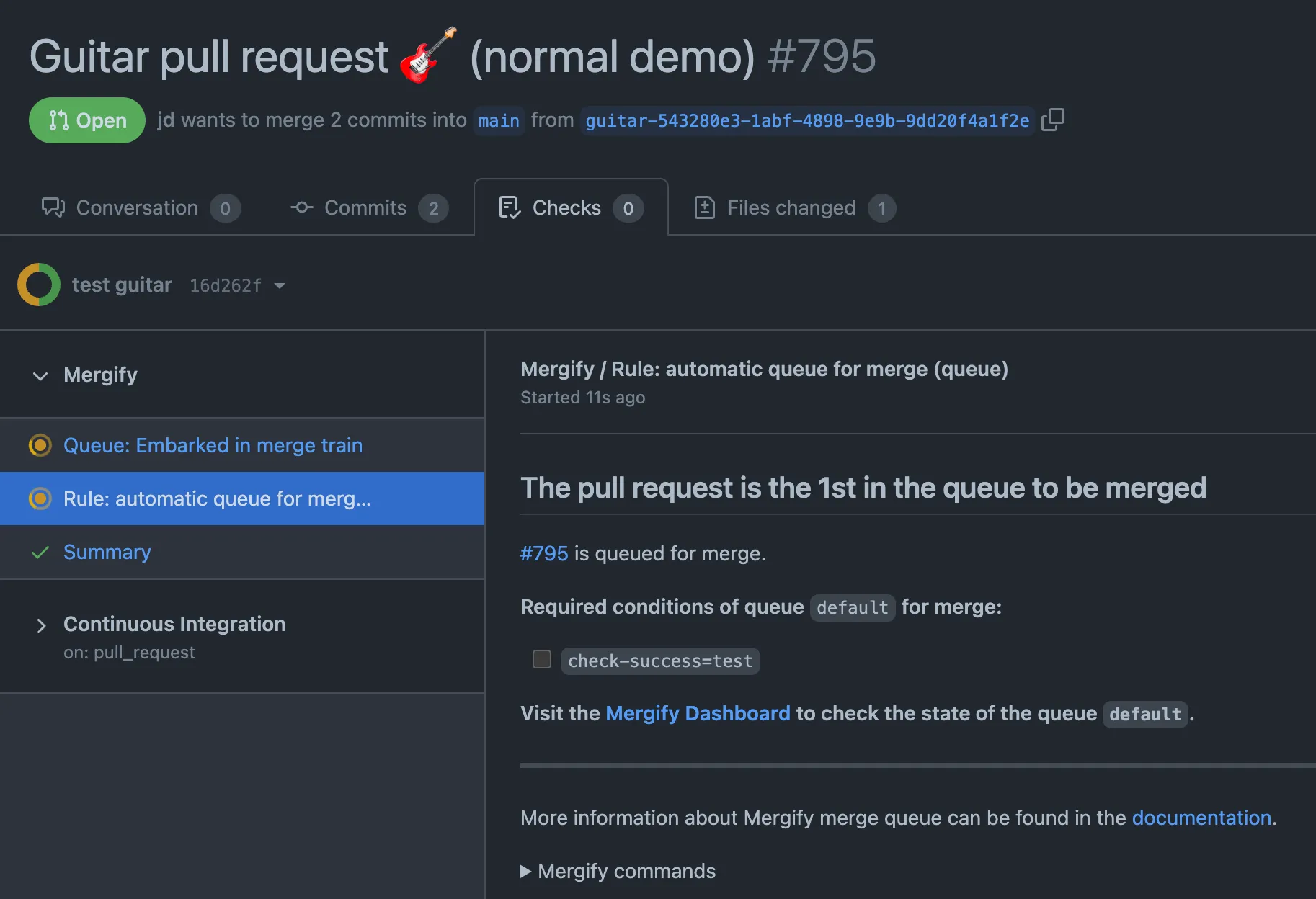

2. Check the Mergify checks tab on the PR: On each pull request page, the “checks” tab will show the status of the Mergify checks. If the pull request is in the queue, you will see a “Mergify — Queued” status.

Monitoring your pull requests’ status helps you understand their position in the queue and estimate when they might be merged, making the entire process more transparent and manageable.
